TT series ceramic plates are made of Al203 or SiC materials with high mechanical strength, excellent corrosion resistance and good wear resistance. After adding part of inorganic binder and pore-forming agent, using hydraulic gradient dry pressing and precision machining, using a good process to spray the alumina film surface with micron aperture, and secondary sintering at 1500 ~ 1800℃ to form a porous ceramic plate with double-sided filter layer with pressure resistance of up to 8bard.

How it works:

Because this porous material contains numerous tiny capillaries, capillary action is possible. Due to its capillary force in the filtration process, only water can pass through the filter plate in the whole process, and the air can not pass through, so as to complete the filtration task, and the vacuum degree can reach more than -0.097Mpa. Low requirements on vacuum pump pumping capacity.

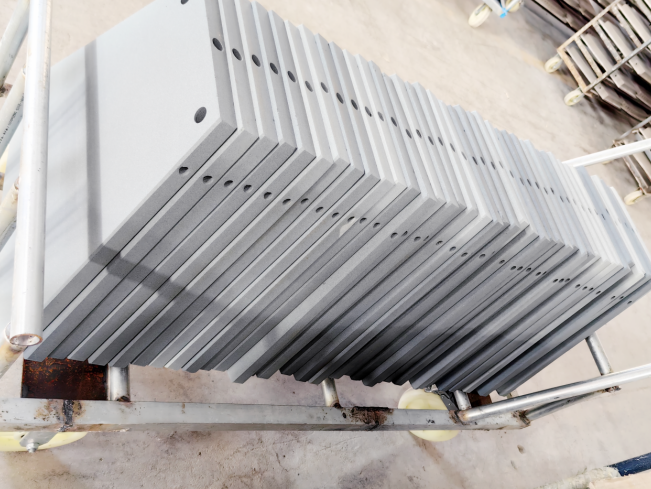

Adhesive composite board

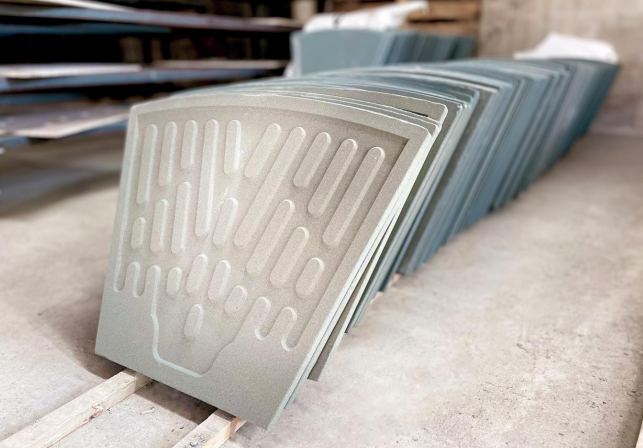

Cast monolithic plate

Features:

1, the skeleton density is large, the film layer strength is high, pressure resistance and corrosion resistance, not easy to damage.

2, high porosity, large production capacity; High filtration accuracy, low vacuum energy consumption; The material is fine and the plasticity is strong. Our company now has the adhesive composite board process and the whole sintering one board process.

3, regeneration methods, can use high temperature and high pressure, organic solvents and other cleaning, regeneration effect is good, the service life is greatly extended.

TT series ceramic filter plate technical parameters

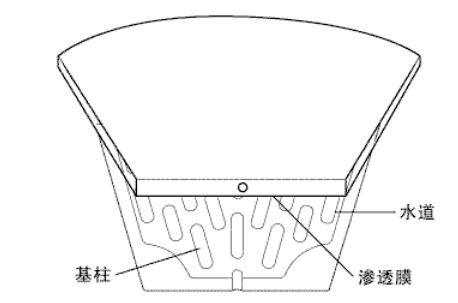

Ceramic plate composition

TT series ceramic filter plate main technical parameters reference table
